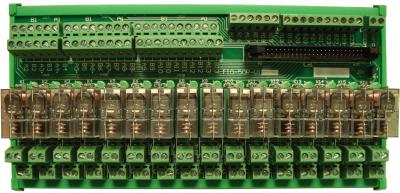

FIO-50P-V1
・Designed for Fanuc CNC controllers and Siemens CNC Controller I/O definitions . Simplifies I/O wiring for easy installation and repair.
・Connect 24 INPUT to the terminal block for easy wiring.
・Connect 16 OUTPUT to relays and terminals , and control peripheral device through 1C Relay contract.
・Aluminum Rail Fixed base design, can be used in the DIN track.
・Relay Coil designs to Input both anode and cathode, and with LED indicates on the Relay.
・针对FANUC CNC控制器及SIEMENS CNC控制器I/O定义来设计。可简化I/O配线，便於安装及维修。
・将24点INPUT连接至端子台，方便使用者配线。
・将16点OUTPUT连接至继电器与端子台，透过继电器1C接点控制周边设备。
・铝轨固定式底座设计，可使用在DIN铝轨。
・继电器线圈正、负电压输入皆可，并附LED动作指示。
|
Type |
FIO-50P-V1 |
|
Number of Relays ∕ 继电器数量 |
16 |
|
Relay ∕ 继电器 |
OMRON |
|
Number of Contacts ∕ 接点数量 |
SPDT ∕ 1C |
|
Rated Current ∕ 接点额定电流 |
16A |
|
Maxmum Contact Current ∕ 接点最大电流 |
16A |
|
Coil Voltage ∕ 线圈额定电压 |
24VDC ∕ 24VAC |
|
Rated Voltage ∕ 接点额定电压 |
250VAC ∕ 30VDC |
|
Maxmum Contact Voltage ∕ 接点最大电压 |
380VAC ∕ 125VDC |
|
Contact Material ∕ 接点材质 |
Ag ∕ 银合金 |
|
Dimension ∕ 尺寸 |
123 × 241mm |
继电器模组
继电器模组
Relay Module Series are designed to be mounted on DIN track. RBD Relay Module can offer 1C Relay contract. Relay Coil designs to Input both anode and cathode, and with LED indicates on the Relay.
继电器模组系列可使用在DIN铝轨。RBD继电器模组系列提供1C接点。继电器线圈正、负电压输入皆可，并附LED动作指示。
| Type |
RBD04-V2 |
RBD08-V2 |
RBD16-V2 |
|
Number of Relays ∕ 继电器数量 |
4 |
8 |
16 |
|
Relay ∕ 继电器 |
OMRON |
OMRON |
OMRON |
|
Number of Contacts ∕ 接点数量 |
1C |
1C |
1C |
|
Rated Current ∕ 接点额定电流 |
16A |
16A |
16A |
|
Maxmum Contact Current ∕ 接点最大电流 |
16A |
16A |
16A |
|
Coil Voltage ∕ 线圈额定电压 |
24VDC ∕ 24VAC |
24VDC ∕ 24VAC |
24VDC ∕ 24VAC |
|
Rated Voltage ∕ 接点额定电压 |
250VAC ∕ 30VDC |
250VAC ∕ 30VDC |
250VAC ∕ 30VDC |
|
Maxmum Contact Voltage ∕ 接点最大电压 |
380VAC ∕ 125VDC |
380VAC ∕ 125VDC |
380VAC ∕ 125VDC |
|
Contact Material ∕ 接点材质 |
Ag ∕ 银合金 |
Ag ∕ 银合金 |
Ag ∕ 银合金 |
|
Dimension ∕ 尺寸 |
88 × 66mm |
88 × 124mm |
88 × 240mm |
